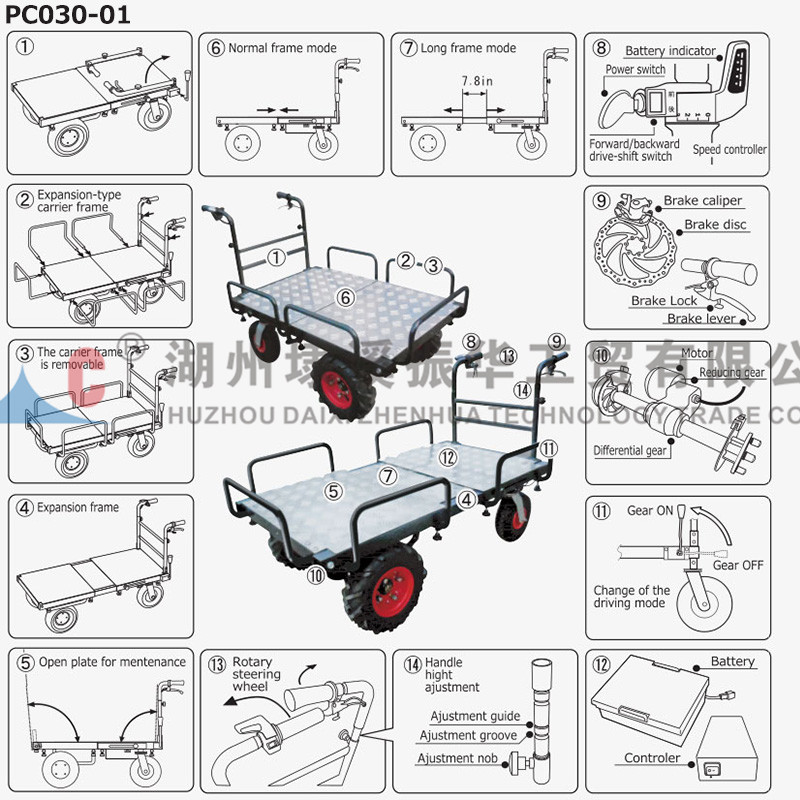

Electric Four Wheels Trolley Specificatons
● Size : 53in(L)x30in(W)x35in～39in(H)
● Weight: 88kg (with battery)
● Speed : High-speed/Low-speed switchable
〔High speed setting〕3.6mi/h (Forward) ? 1.2mi/h (Backward)
〔Low speed setting〕1.9mi/h (Forward) ? 0.8mi/h (Backward)
● Max.Load capacity : 400kg
● Max.Climbing angle : Slope 12°(Max.Load capacity : 300kg)
● Carrier area : 44in～52in(L)x30in～38in(W)
● Carrier hight: 15in
● Motor: Wheel motor 350W / RPM:80/min
? (Overcurrent protection circuit)
● Brake system : Disc brake / Brake lever with stopper
● Frame : Low carbon steel
● Surface treatment: Powdered baking finish
● Front tire(2): 13x5.00-6(Pneumatic tire)
● Rear tire(2) : 3.00-4 Caster type (No flat tire)
● Min.Tuming radius : 27in
● Battery : DC24V,24A Electrolyte lead storage battery
? (Encapsulated type)
● Power switch key (3)
● Grip throttle speed adjustment
? (0 position automatic retractable)
● Forward/backward drive-shift switch
● Battery indicator
● Rapid charging function : (charging time : 8hours)
● Charger : (input) 100V～240V/50～60Hz (output) DC29V 3.5A
● Operating temperature range : 32°F～104°F
● Qty per 20'/40' M Container(pcs): 67/135
● Made in China
